CHAIN repeater option to simplify cabling

Usually there is one antenna, one coaxial cable and one repeater unit in a GNSS/GPS repeater system.

If signal is needed in more than one area inside a building, we can install repeaters that share a single outdoor antenna in a custom-designed system.

This is usually achieved by connecting the repeaters together in a star topology using amplifiers and splitters.

However, there are three repeaters in the range that can be connected in a CHAIN configuration, which means that they are effectively connected in series.

This can simplify the RF and DC power cabling if it is not possible to install cables back to a central point.

Also useful if AC power is not available at the repeater locations.

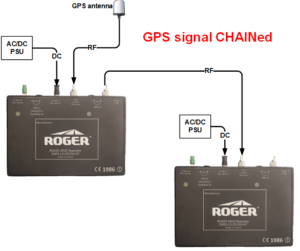

Diagram shows two repeaters with coaxial cable connected between the RF OUT port of repeater #1 and the RF IN port of repeater #2.

Both repeaters are powered by a local AC/DC power supply.

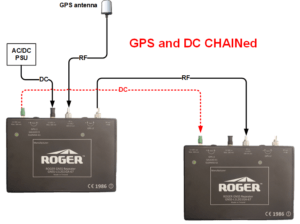

These repeaters are CHAINed together by a coaxial cable and a DC power cable.

There is a single AC/DC power supply at one end that is capable of powering several repeaters in a CHAIN.

The PSU can be placed at either end of the CHAIN.

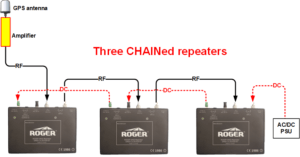

This is an example of how three repeaters can be CHAINed together, powered from one AC/DC PSU at one end of the network.

One RF input and one RF output (-4dB).

The PSU provides power for all three repeaters.

The left-hand repeater supplies 5V DC to power the amplifier and the antenna LNA.

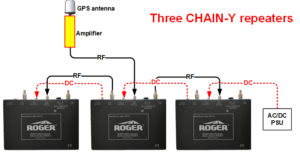

Repeater GNSS-L1G1GA-CHAIN-Y allows one CHAIN repeater to be the centre of the network, connecting to other repeaters located in different directions.

One RF input and two RF (+4dB) outputs

The PSU provides power for all three repeaters; they can be individually powered from a local supply if preferred.

The centre repeater supplies 5V DC to power the amplifier and the antenna LNA.

There are three repeaters that offer CHAIN functionality:

1. GNSS-L1G1GA-CHAIN – GPS L1, GLONASS, Galileo, BeiDou – signal input is at one end of the CHAIN.


2. GNSS-L1G1GA-CHAIN-Y – GPS L1, GLONASS, Galileo, BeiDou – signal input is at the centre of the CHAIN.


3. GNSS-L1L2G1GA-67 – GPS L1 & L2, GLONASS, Galileo, BeiDou – CHAIN functionality built-in.

For more information, please contact FalTech via the Request Quote button below, or the contact form to the right of this page.

Provide details of what you need to achieve, and we will help create a solution for you.
